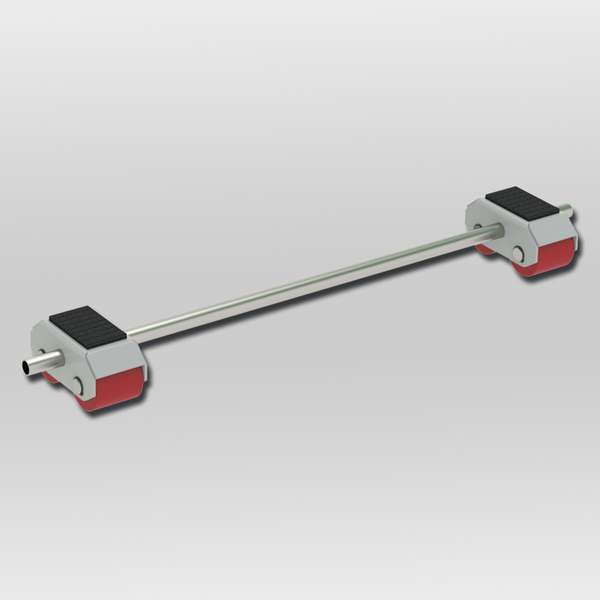

Duo 3 Polyurethan
Load capacity: 3 t
Height: 110 mm
Art.-Nr. 70 803 20
- The transport trolleys of the new Econ-Line have a load capacity of 3 000 kg, 6 000 kg and 12 000 kg each unit, for easy and safe transport of heavy loads and machines.
- The adjustable-width transport trolleys consist of two individual load cassettes with a galvanized connecting bar. The two load cassettes of “Duo 3” have 3 tons capacity.
We recommend a maximum transport weight that is less than the individual capacity of each unit. This will prevent overloading of the trolleys on uneven ground or with unequal load distribution. - The coating is molded around a steel core. Two precision ball bearings are pressed into the steel core.
- All load surfaces are outfitted with antiskid rubber load pads.
- The low height of only 110 mm is compatible to common transport systems.
- The trolleys of the new Econ-Line are produced in the European Union.
Technical data
Title | Unit | Data |
---|---|---|
Load capacity | kg | 2 x 1500 |
Number of castors | pcs. | 4 |
Castor dimensions Ø x Fitting length | mm | 85 x 86 |
Height | mm | 110 |
Supporting surface of turntable | mm | 120 x 70 |
Cassette dimensions | mm | 203 x 106 |
Connecting bar without joint | mm | 1 100 |
Weight | kg | 9 |
Cassettes adjustable from - to | mm | 125 - 990 |
